Control Module

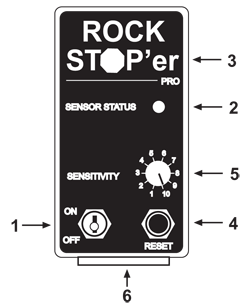

RSCM.png1. On/Off Toggle Type Power Switch

  • Turns the Rock Stop'er system "on" or "off"


2. Sensor Status LED Light

  • GREEN LIGHT
    • Indicates the power switch is "ON"
    • Indicates the sensor circuit is "OK"

  • NO LIGHT
    • Indicates the power switch is "OFF" or
    • Fault with RSCM power or ground connections

  • FLASHING GREEN/RED
    • Indicates the sensor is disconnected, or
    • Fault with sensor circuit wiring (also occurs during a detection)


3. Red Stop Light

  • Flashing ON and OFF with beeping = DETECTION! (the sensor has been tripped)


4. Reset - Push Button Switch

  • After the sensor has tripped the “Red Stop Light” is flashing along with a beeping sound. Press the “reset button” to acknowledge the detection. Then reverse the feed drive to reset the forager stop system as would normally be done after a metal detection. Shut off the main drive and wait for all moving parts to stop before searching for the detected stone(foreign object) in the feedroll area.
  • Reset” is also used to enter “Control Signal Program Mode” (see Operators Manual)


5. Sensitivity Adjustment Dial

  • Adjusts the RSCM sensitivity to the RSS (sensor) signal
    10 = Most Sensitive-any signal from the sensor will cause a detection
    1 = Least Sensitive

  • See Operators Manual  for more information on sensitivity settings


6. RSCM Wiring Harness Connector

  • see Operators Manual for harness / connector terminal identification
